BLG-04-F

FIXED BOLLARD (M40/K8)

BLG-04-F (Fixed) M40/K8 crash test certified bollard is one of ELGO Team's f solutions for permanent Urban Vehicular Access Control (pedestrian security) and high-security applications . This BLG-04-F measures 750mm (29.5”) in height and 270mm (11”) in diameter.

​

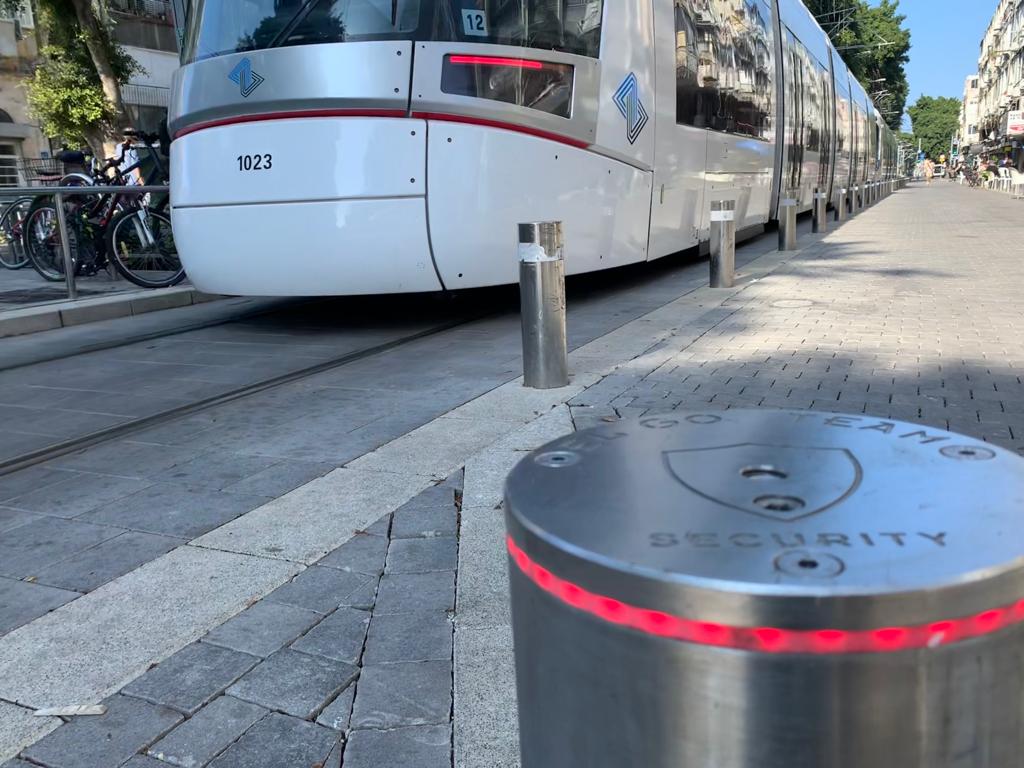

This bollards also comes with optional LED lights for maximum visibility. An excavation depth of 1,750mm (69”) is required when installing the BLG-04-F bollard. This product has been rigorously tested, based on ASTM M40/K8 standards, meaning that it can stop a vehicle weighing 6.8 tons driving at 65kph (40mph). Atop its outstanding features, the BLG-04-F also boasts an elegant design and look which makes it resonate with the aesthetics of different environment.

OR

Product
BLG-04-F
Options
Heating/ Led Light
Finish
Zinc/ Paint/ Stainless/ Polyurea
Crash Rating
ASTM F2656 07-M40 Standards P1-Zero penetration 6.8 ton/ 65kph/ 13,600lbs/40mph
Diameter (D)
270 mm/ 11"
Internal Overlap (O)
600mm/ 16"
Sleeve Depth (I)
700mm /27.5" to 1600mm /63"
Foundation Depth
700mm /27.5" to 1600mm /63"
Height (H)
750mm/ 27.5"
