ELECTRO-HYDRULIC RETRACTABLE BOLLARD (M40/K8)
The BLG-04-EH (Electro-Hydraulic) M40/K8 crash test certified bollard is an exquisitely designed anti-ramming product that is ideal for securing high-profile facilities and public spaces requiring an elevated level of protection. The BLG-04-EH has been crash-tested for ASTM F2656 07-M40-P1, ensuring protection against vehicles weighing 6.8 tons driving at 65kph (40 mph).
This innovative and easy to use product measures 750 mm (30”) in height and 270 mm (11”) in diameter, and it requires an excavation depth of 1800 mm (70”) for installation. The bollard boasts an IP68 rating which means that it is fully operational even when submerged in water. In addition, the Hydrulic Power Unit (HPU) is self-contained in a sealed oil compartment which does not require oil refill or top up.
This electrically driven hydraulic bollard boasts a stainless steel coating to prevent corrosion, and also comes with optional LED lights for maximum visibility. Atop its outstanding features, the BLG-04-EH also boasts an elegant design and look which makes it resonate with the aesthetics of different environments.
OR
| Product | BLG-04-EH |
|---|---|
| Height (H) | 750mm/29.5" |
| Foundation depth | 1.75m/68.9" |
| Sleeve Depth (I) | 1.59m/ 62.5" |
| Internal Overlap (O) | 0.6m/ 16" |
| Diameter (D) | 270mm/ 11" |
| Normal Operating speed | 4 sec |
| Emergency Fast Operation (EFO) | 2.5 sec |
| Crash Rating | ASTM F2656 07-M40-P1-Zero penetration 6.8 ton @65kph/ 13,600lbs @40mph |
| IP Rating | IP 68 |
| Operating temperature | -20+60 C/ -4 +140 F Heating unit is optional |
| Finish | Zinc/Paint/ Stainless/Polyurea |
| Options | Heating/ Led Light/ EFO |
| Actuator | Electro-Hydraulic (Self contained) |
| Sensors | Upper / Lower limit switches |
| Power | 1.1 Kw 3-Phase motor |
| Cycles per day | 2700 |
| MCBF | 1,500,000 cycles |

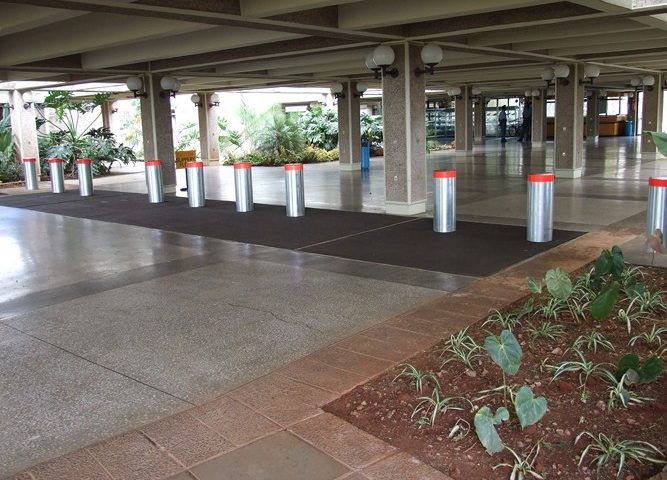

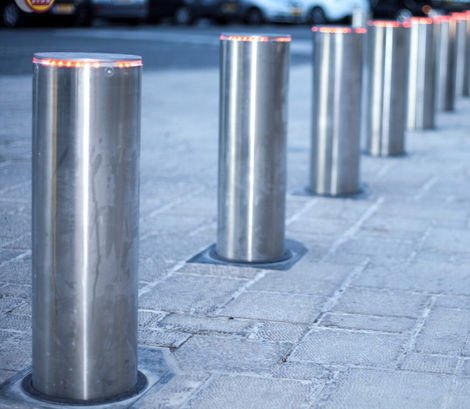

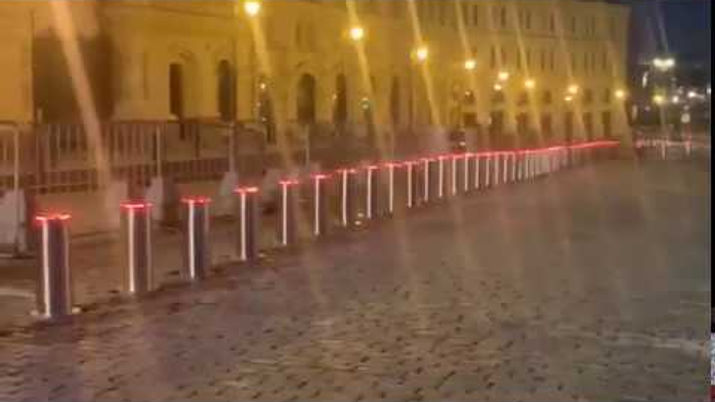

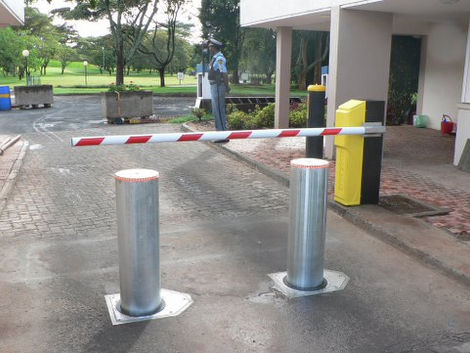

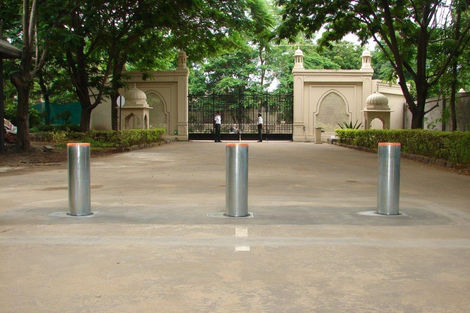

PHOTOS
