BLG-02-SM-350
SHALLOW MOUNT - FIXED / REMOVEABLE BOLLARD (M30/K4)

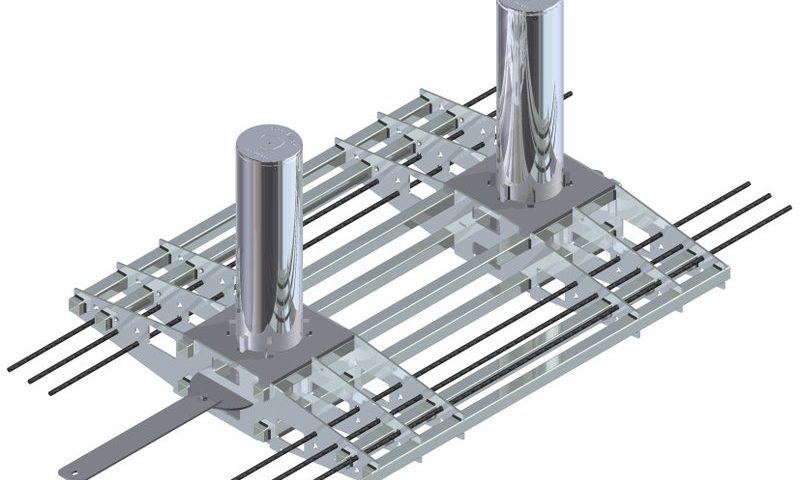

When you think of a robust and sturdy barricade, don’t look further than the BLG-02-SM-350MM. This high-end bollard features a durable steel cage which holds together two sturdy bollards (available in two models, Fixed Bollards and REmoveable Bollards) to create a formidable barrier that protects people and restricts vehicular access. This bollard is ideal for urban streets or elsewhere, when excavation is limited.
The BLG-02-SM-350MM is a crash certified bollard as per the IWA 14-1:2013 Bollard V/7200[N2A]/48/90:0.0 standard (test is equivalent to the ASTM M30 standards), and resulted in zero penetration after impact. This security solution boasts a modular design, which can adjust to any curve and can operate as a removable bollard. Atop its spectacular design and the formidable barricade it provides, this bollard comes with clean and trendy zinc or stainless steel finish which suits any outdoor condition. Additionally, it comes with other optional features which include LED light for more visibility. The BLG-02-SM is 220mm (9") in diameter and 700mm (27.5") in height, and requires an excavation depth of only 350mm (13.7"). Download product data sheet
To download the file, please fill in your details:
| Product | BLG-02-SM-350 |
|---|---|
| Height (H) | 700mm / 27.5" |
| Foundation Depth | 350mm / 13.7" |
| Diameter (D) | 220 mm / 9" |
| Opening Between Bollards | 1,200mm / 48" |
| Cage Width & Length | 1,650mm / 65" x 1,150mm / 45" |
| Versions | Fixed / Removable |
| Crash Rating | IWA 14-7.2 ton- 48km\M30-P1-Zero Penetration |
| Options | LED lights, Hot deep galvanized with stainless steel cover |
