METIS – Shallow-mount sliding, shallow-mount, all-electric K4 security bollards
13/03/2019BLG-05-EH
14/04/2019

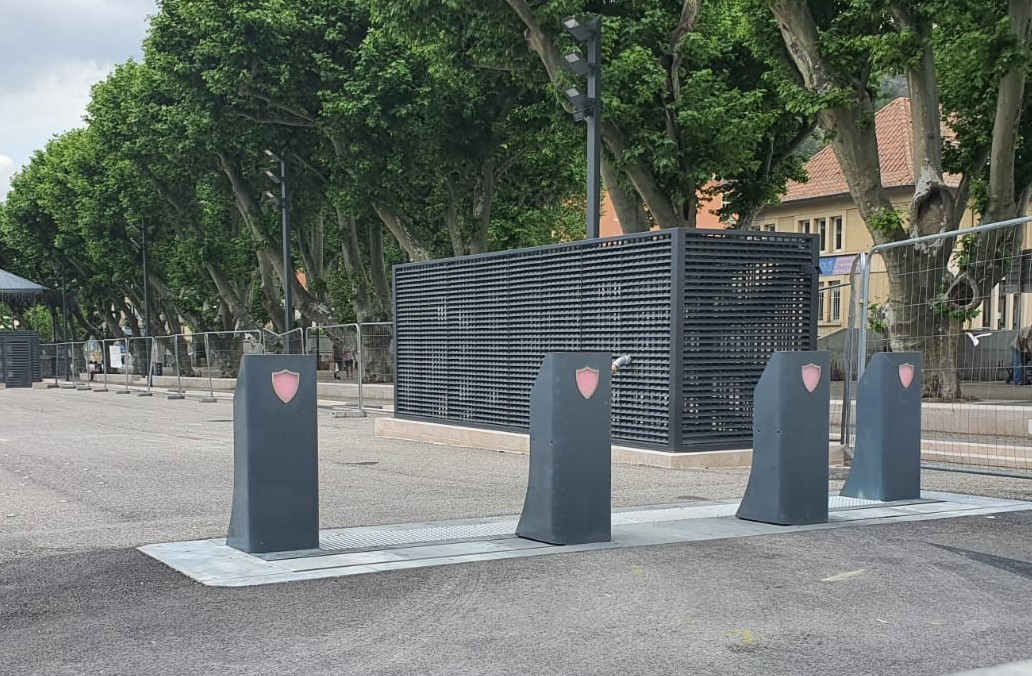

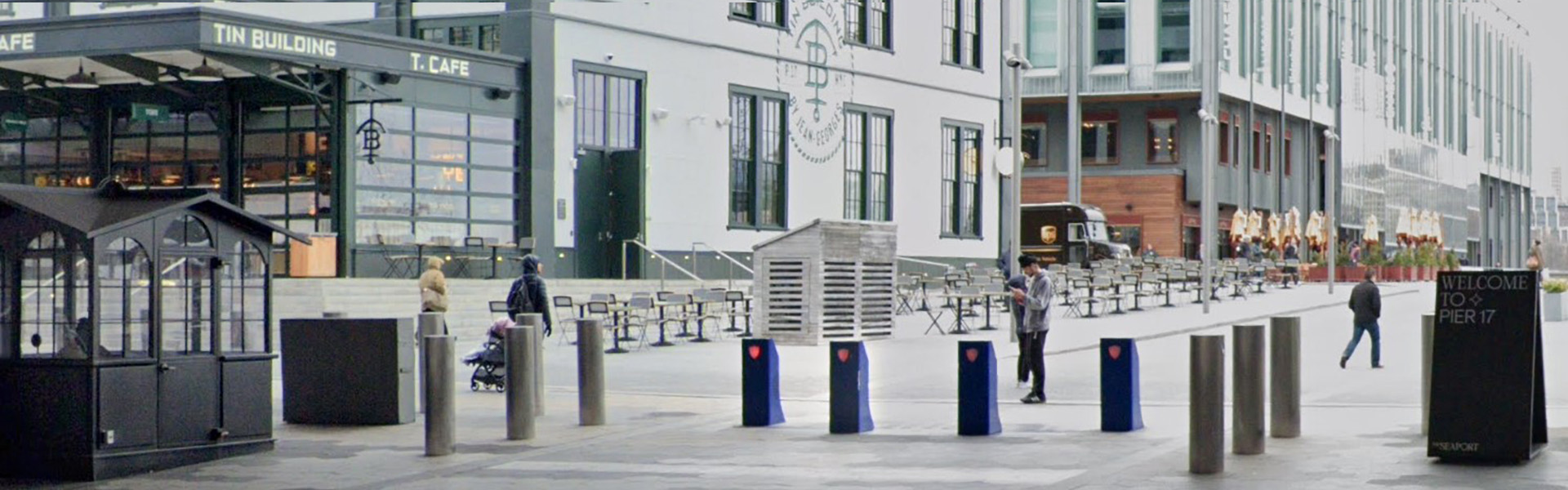

METIS M30/K4 SURFACE-MOUNT BOLLARDS
METIS is an innovative all-electric bollards system, comprising high-security sliding bollards designed to meet the highest security standards - IWA-14 48km/h rated with zero penetration. METIS has a unique all-electric drive unit, with a simple and reliable chain drive system. METIS can be mounted on any concrete pad thicker than 200 mm using common anchor bolts. With its unique look and technology, METIS provides an advanced and reliable solution in the perimeter security area.
To download the file, please fill in your details:
| Product | BLG-METIS |
|---|---|
| Height Above Road (H) | 1010mm/ 39.76" |
| Base height | 114mm/4.48" |
| Regular operation speed | 4 sec |
| IP Rate | IP-54 |
| Resistance | IWA 14-1:2013 V/7200[N2A]/48/90:0.0 Bollard continues to operate after crash |
| Operation temp | -20+60 C/ -4 +140 F Heating unit is optional |
| Finish | Powder coating any RAL color. |
| Features | IR safety eyes |
| Actuator | Electric 3 phase motor with chain drive system |
| Limit switch | Inductive UP DOWN limit switches |
| Power | 1.5 Kw three phase motor running on a single phase, power supply tailored to customer requirements |
| Cycles per day | 2700 |
| MCBF | 1,500,000 cycles |
