BLG-02-SA

SEMI-AUTOMATIC RETRACTABLE BOLLARD (M30/K4)

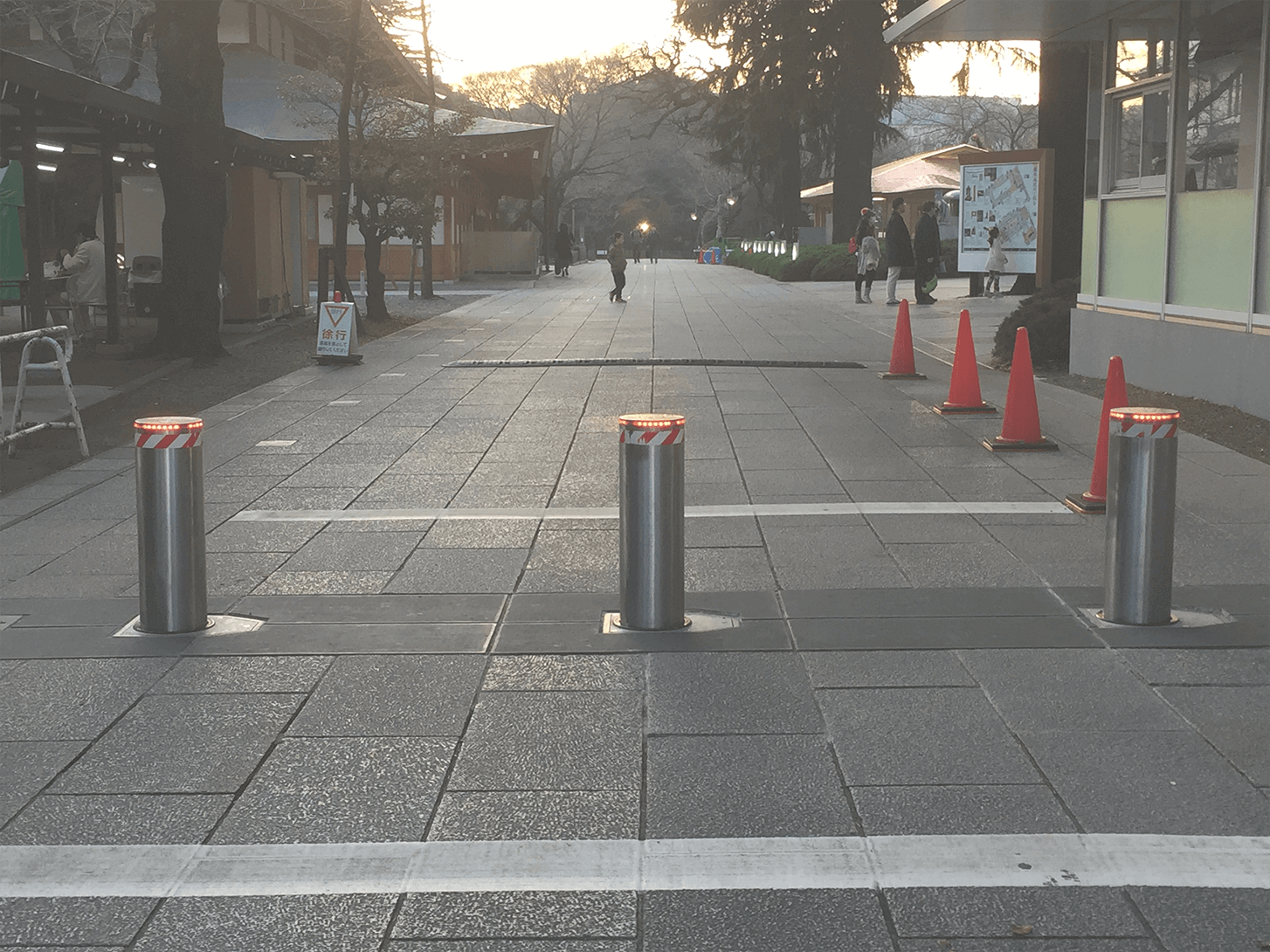

BLG-02-SA (Semi-Automatic) M30/K4 bollard is manualy activated by an operator to raise and lower ther bollard when needed. It is activated by a self-contained gas piston, which makes operating it effortless, and alongside its affordable price (purchase and operational price) and  reliability, make an ideal solution for Urban Vehicular Access Control (pedestrian security) and high-security applications in places where the bollards are less frequently operated (for example, seasonly closed pedestrian streets) . BLG-02-SA measures 700mm (27.5”) in height and 219mm (8.6”) in diameter (also available in a 1,000mm / 39" option). The bollard boasts an IP68 rating which means that it is fully operational even when submerged in water.

This semi-automatic bollard boasts a stainless steel coating to prevent corrosion, and also comes with optional LED lights for maximum visibility. An excavation depth of 1,400mm (55”) is required when installing the BLG-02-SA bollard.

Product BLG-02-EH
Height (H) 700mm/27.5" or 1,000mm/39"
Foundation Depth 1400mm/55" or 1700mm/67"
Sleeve Depth (I)1200mm/48" or 1500mm/59"
Internal Casing (I)1210mm/ 48"
Internal Overlap (O)300mm/ 12"
Diameter (D)220mm/ 9"
Crash Rating(Equivalent to) ASTM F2656 07-M30 P1-Zero penetration
IP RatingIP 68
FinishZinc/Paint/ Stainless/Polyurea
OptionsHeaing/ Led Light
ActuatorGas Piston (Self contained)
