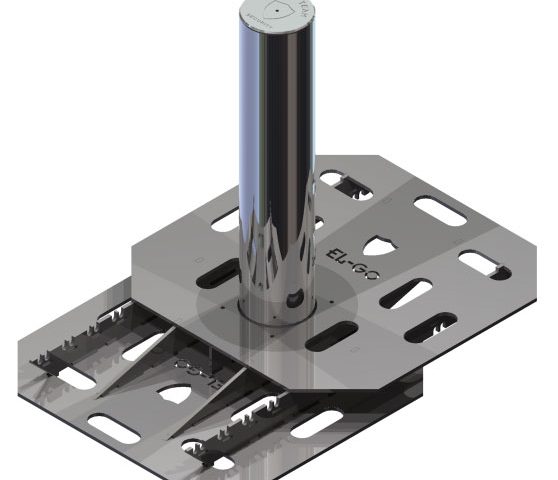

    BLG-02-SM-200 Super Shallow Mount Bollard

    The BLG-02-SM-200 Super Shallow Mount Bollard is a superb solution for the growing threat of car-ramming and other vehicular attacks. Terrorists are increasingly using vehicles to target crowded civilian areas and sensitive, high-profile sites, killing and wounding thousands worldwide. Our solution addresses this critical vulnerability quickly and effectively, securing dense urban areas and complex environments and perimeters.

    The BLG-02-SM-200 is an easily installed fixed bollard, requiring a super shallow foundation of only 175 mm (6.9"). This makes it ideal for urban areas and other high-density locations with vast underground infrastructure or limitations that hinder more traditional installations. Our cutting-edge bollard was certified for PAS68 and IWA-14, and has been successfully tested for resistance of a 7,500 kg truck traveling at 48 km/h (30 mp/h), with zero penetration. This innovative bollard is available in a variety of colors and finishes, seamlessly blending into any environment.

    Download product data sheet
    To download the file, please fill in your details:



      Product BLG-02-SM-200
      Height Above Road (H) 1000mm/ 39.3"
      Foundation depth 175mm/6.9"
      Bollard Diameter (D) 220mm/8.7"
      Bottom footprint 1460mm(L) x 1000mm(W)
      57.5"(L) x 39.3"(W)"
      Protection Level PAS68:2013 V/7500(N2)/48/90:0.0/0.0
      Unit weight 310kg/683lbs
      Finish Hot Galvanized, Powder coated,
      any RAL color, Stainless steel cover
      Options Available removable version
